Invacare Action 3 NG Wheelchair
Product Specification:
| Type Of Wheelchairs | Manual |
| Model Name/Number | Invacare – Action 3NG standard wheelchair |
| Frame Color | Grey |
| Seat Width | Narrow 15″ to 17″, Standard 17″ to 19″ |
| Material | Aluminium |
| Frame Material | Aluminium |
| Automation Grade | Manual |
| Color | Grey |

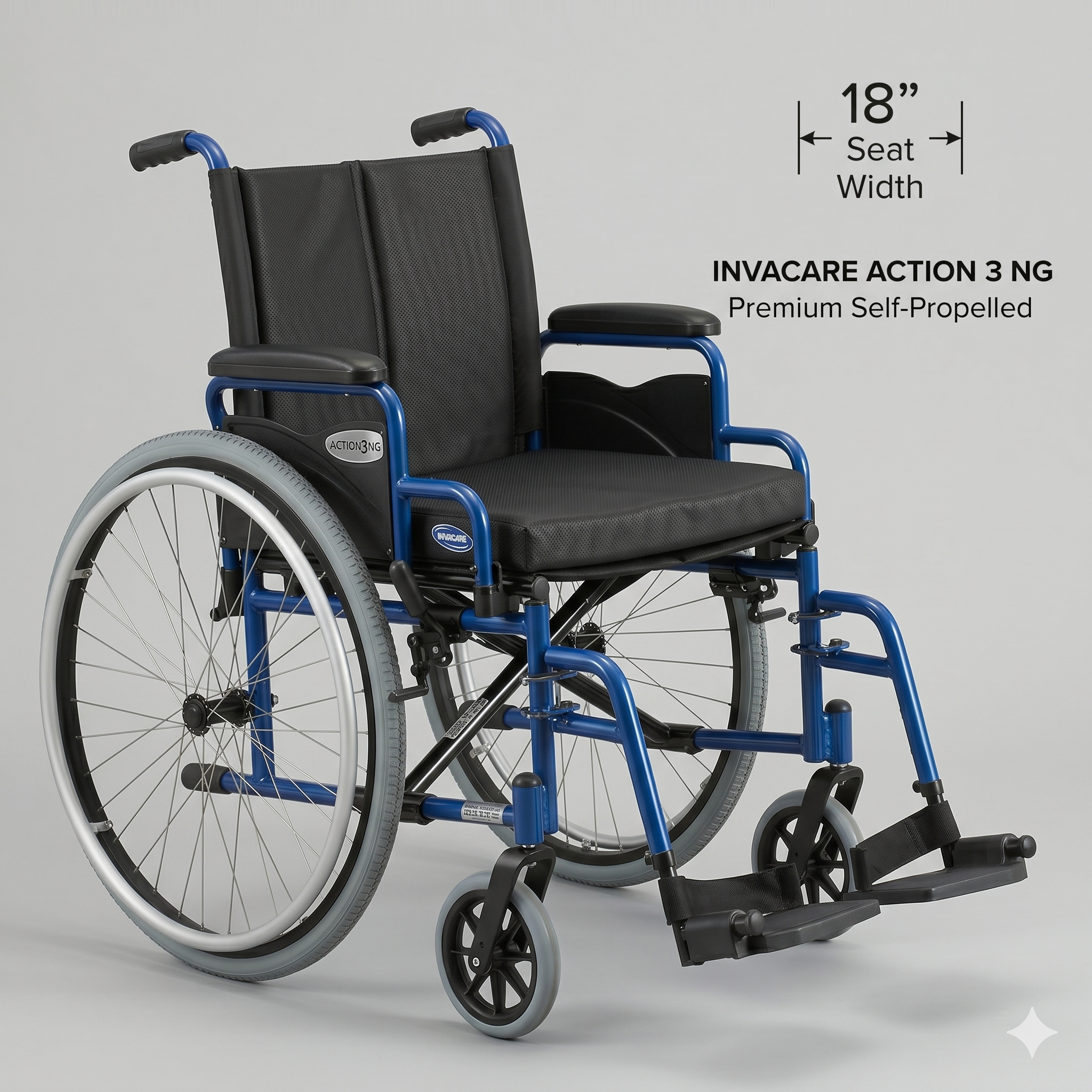

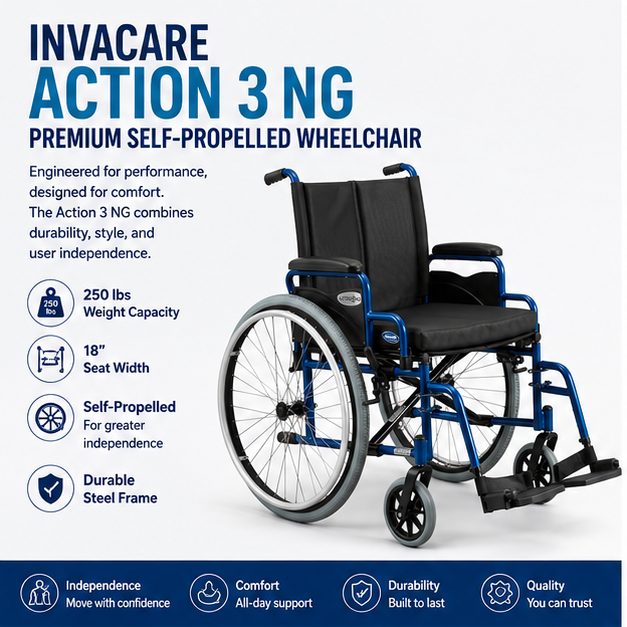

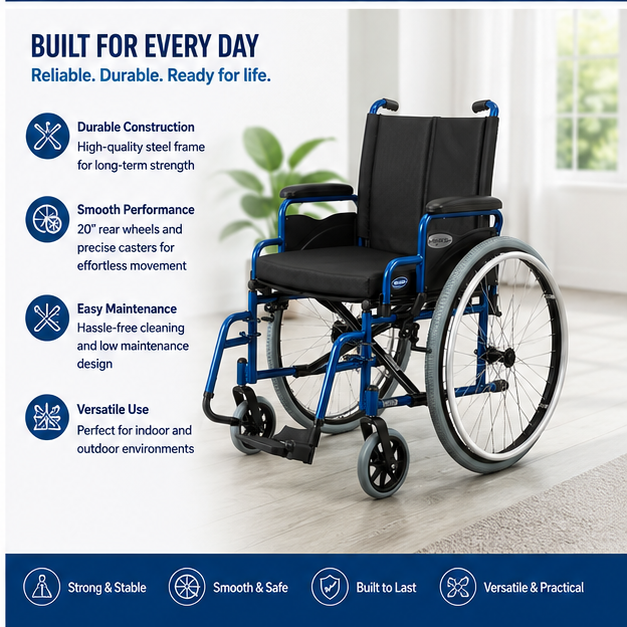

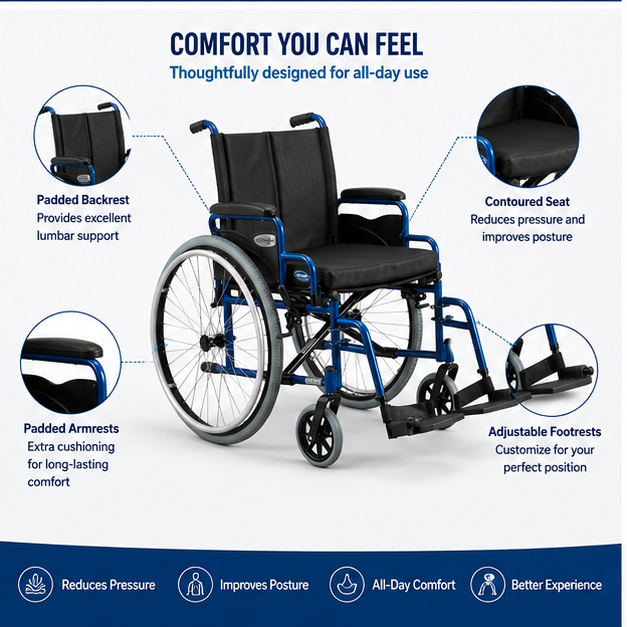

Invacare Action 3 NG manual wheelchair
The Invacare Action 3NG manual wheelchair is a sleek and stylish chair for everyday use. A highly versatile design enables the wheelchair to be as modified as you need according to your functional and clinical requirements.
With a vast range of options and accessories available that are both quick and easy to reconfigure, the Action 3NG can easily be transformed from a more active setup to a more supportive setup if required. The perfect model for refurbishment and re-issuing with its cross-compatible options and accessories that can be seen across the Action family and other Invacare product categories – Power Mobility, Rea Family, Active, Seating and Positioning, and Alber.
About
The customizability options extend to the product’s design, which features a modern and expanded color range in addition to an increased positioning offer.
- SEAT WIDTH: 380 / 405 / 430 / 455 / 480 / 505 mm
SEAT DEPTH: Self propel 400 / 450 / 500 mm / Transit 400 / 450 mmSEAT ANGLE: 0° / 3° / 6°SEAT HEIGHT: Self propel 360 / 385 / 410 / 435 / 460 / 485 / 510 mm / Transit 460 / 485 / 510 mmBACKREST ANGLE: 0° / 7° / 0° – 30° / – 15° – +15°BACKREST HEIGHT: Self Propel 325 – 510 mm / Transit 380 – 460 mmFRONT FRAME ANGLE: 80° / 0 – 75° / 90°LENGTH OF FOOTRESTS: 200 – 400 / 330 – 460 / 440 – 510 mmARMREST HEIGHT: 200 – 280 / 240 / 170 – 300 / 210 – 350 mmDRIVING UNIT WIDTH: Self Propel Seat width + 190 mm / Transit +160mmTOTAL WIDTH FOLDED: Self Propel 295 mm / Transit 260mmTOTAL HEIGHT FOLDED: 795 – 1510 mmTOTAL LENGTH: Self Propel 980 – 1105 mm / Transit 950 – 1050 mmTOTAL LENGTH WITHOUT FOOTRESTS: Self propel 835 – 960 mm / Transit 710 – 910 mmTOTAL HEIGHT: Self propel 820 – 1050 mm / Transit 920 – 1050 mmMAX. SAFE SLOPE: 7°TURNING DIAMETER: 870 mmMAX. USER WEIGHT: 125 kgTOTAL WEIGHT: Self propel 13.0 kg / Transit 13.5kgTRANSPORT WEIGHT: Self propel 7.1 kg / Transit 10.3kg- CRASH TESTED: Passed
FRAME COLOUR: Hypnotic Purple, Matt Black, Blue Pop, Matt Red, Pearl White, Slate Grey, Electric Green, Anthracite BlackCOLOUR (OTHER): Upholstery: Black Nylon

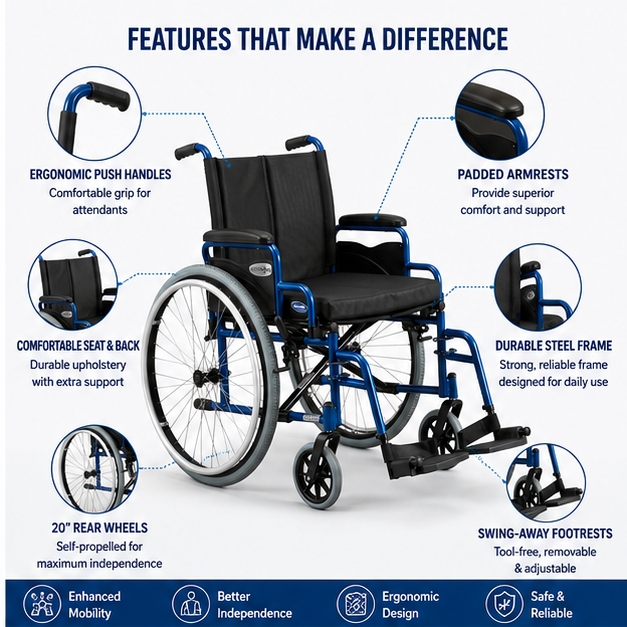

Key features:
- Lightweight: With a base weight of 14.2 kg, the Action 3 NG’s weight can be further decreased to 13 kg with the optional lightweight castor housing and lightweight wheels.
- Improved armrests: A redesigned release lever and receiver make for a smooth “flip-back” motion for users, while the broad range of optional armrests adapts the wheelchair to a variety of needs.
- Optional adjustable backrest: A patented, stepless, angle-adjustable backrest design allows adjustments with the user sitting in the wheelchair. A gas spring mechanism lets carers adjust the user’s back position in one continuous movement with raised assistance.
- Multi-way height adjustment: A choice of 20 rear wheel positions, elevating leg rests, and amputee supports offer optimal height adjustment and comfort.
- Dual handrim for hemiplegic use: An optional add-on dual handrim for hemiplegic use with a quick-release mechanism for easy foldability.
- Assortment of options: The Action 3 NG adapts to a range of needs with its many optional features and add-ons like a variety of headrests, backrests, and armrests; anti-tip device; transparent tray; and others.
Specifications:
Documents:
| Wheels | Self Propelled, Transit |
|---|---|
| BACKREST ANGLE | 0°, 7°, 80° |
