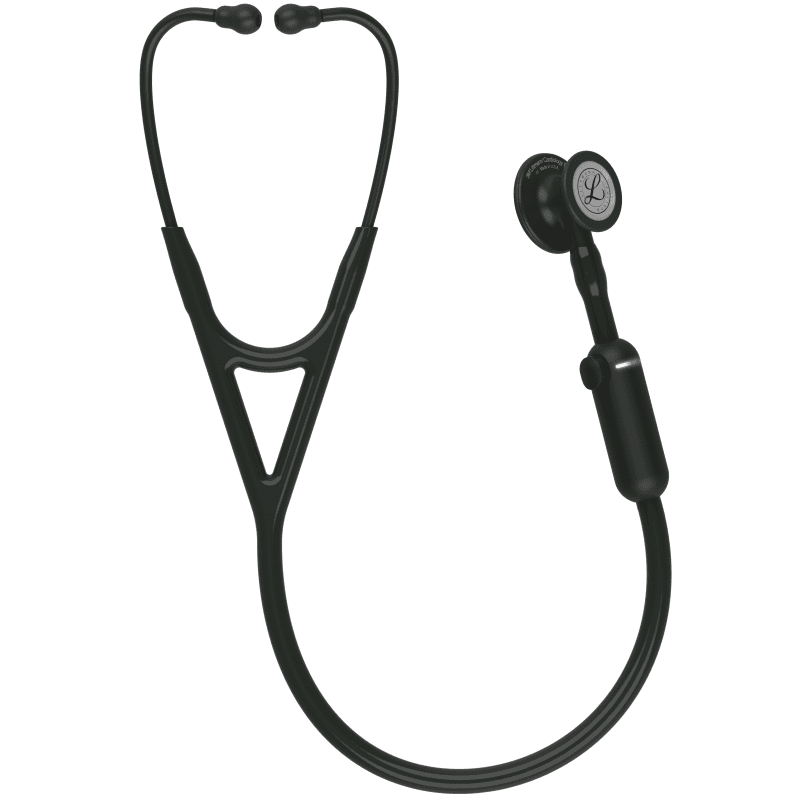

3M™ Littmann® CORE Digital Stethoscope, 8480, Black Chestpiece, Tube, Stem and Headset, 27 inch

A new class of clarity- 3M Littmann Core Digital Stethoscope

The 3M Littmann Core Digital Stethoscope features the outstanding acoustics, comfort, and quality of a Littmann cardiology-grade stethoscope enhanced by powerful digital technology. Features like up to 40x amplification¹ and active noise cancellation can help you auscultate with greater confidence. The 3M Littmann Core Digital Stethoscope connects with Eko software on a smart device² to visualize, record, and share data.

Take listening to a whole new level

The FDA-cleared 3M Littmann Core Digital Stethoscope toggles between analog and amplified listening modes so you can listen how you want to during assessments. Tunable diaphragm technology—a 3M invention—lets you hear different frequency sounds by simply adjusting the pressure on the chest piece. Hold the chestpiece with light pressure on the patient to hear low-frequency sounds; press a little more to hear higher-frequency sounds. Soft-sealing ear tips conform to individual ears for optimal comfort and excellent sound occlusion.

The 3M Littmann Core Digital Stethoscope works with Eko software on iOS and Android devices, giving you HIPAA-compliant means to save and annotate 15, 30, 60, or 120-second recordings in a secure dashboard. Create a library of heart sounds to monitor the progressions of a disease or for education, and securely share recordings with colleagues. The 3M Littmann CORE Stethoscope can be used with Eko Artificial Intelligence to aid in the detection of murmurs (AI purchased separately).

The 3M Littmann CORE Digital Stethoscope is pre-assembled with a CORE Digital Attachment and a 3M Littmann Cardiology IV Stethoscope. Please visit the respective User Manuals for instructions for use.

CORE Digital Attachment User Manual
3M Littmann Cardiology IV Stethoscope User Manual

Please note that the warranty period for the 3M Littmann CORE Digital Stethoscope is 2 years and does not carry the warranty period mentioned in the Littmann Cardiology IV Stethoscope User Manual, which applies to the purchase of a Littmann Cardiology IV Stethoscope only when purchased separately.

40X amplification based on a comparison of analog versus electronically assisted amplified listening with maximum volume at the peak frequency (125 Hz).
Smart devices not included

3M™ Littmann® CORE Digital Stethoscope

Specifications:

Binaural Construction	Double Lumen
Brand	Littmann®
Catalog Number	8480
Chestpiece Technology	Double-sided
Chestpiece Weight (metric)	87 g
Diaphragm Diameter (metric)	4.3 cm
Diaphragm Material	Epoxy/Fiberglass
Diaphragm Type	Digital Electronic Filtering – Ambient Noise Reduction (ANR)
Eartip Type	Soft Sealing
Extra Eartips	Yes
Headset Material	Anodized Aluminum
Model	CORE
Net Weight (Metric)	232 g
Overall Length (Metric)	69 cm
Patient	Adult, Infant, Neonatal, Pediatric
Performance	10+
Small Diaphragm Diameter (metric)	3.3 cm
Special Adaptors	No
Tube Colour	Black

Here are some of the features that distinguish the 3M Littmann Core Digital Stethoscope:

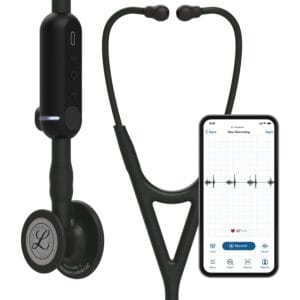

Connects to the software Free** Eko

Download the free Eko app to your smart device to visualize, capture, and share heart sound waveforms.

40x or more amplification

40x or more amplification (at peak frequency, vs. analog mode)

Anti-noise technology

Noise cancellation lessens obtrusive background noise.

Modalities in both analog and digital

Switch between analog and amplified hearing modes.

Design that is comfortable

Soft-sealing ear tips provide an excellent acoustic seal as well as a comfortable fit.

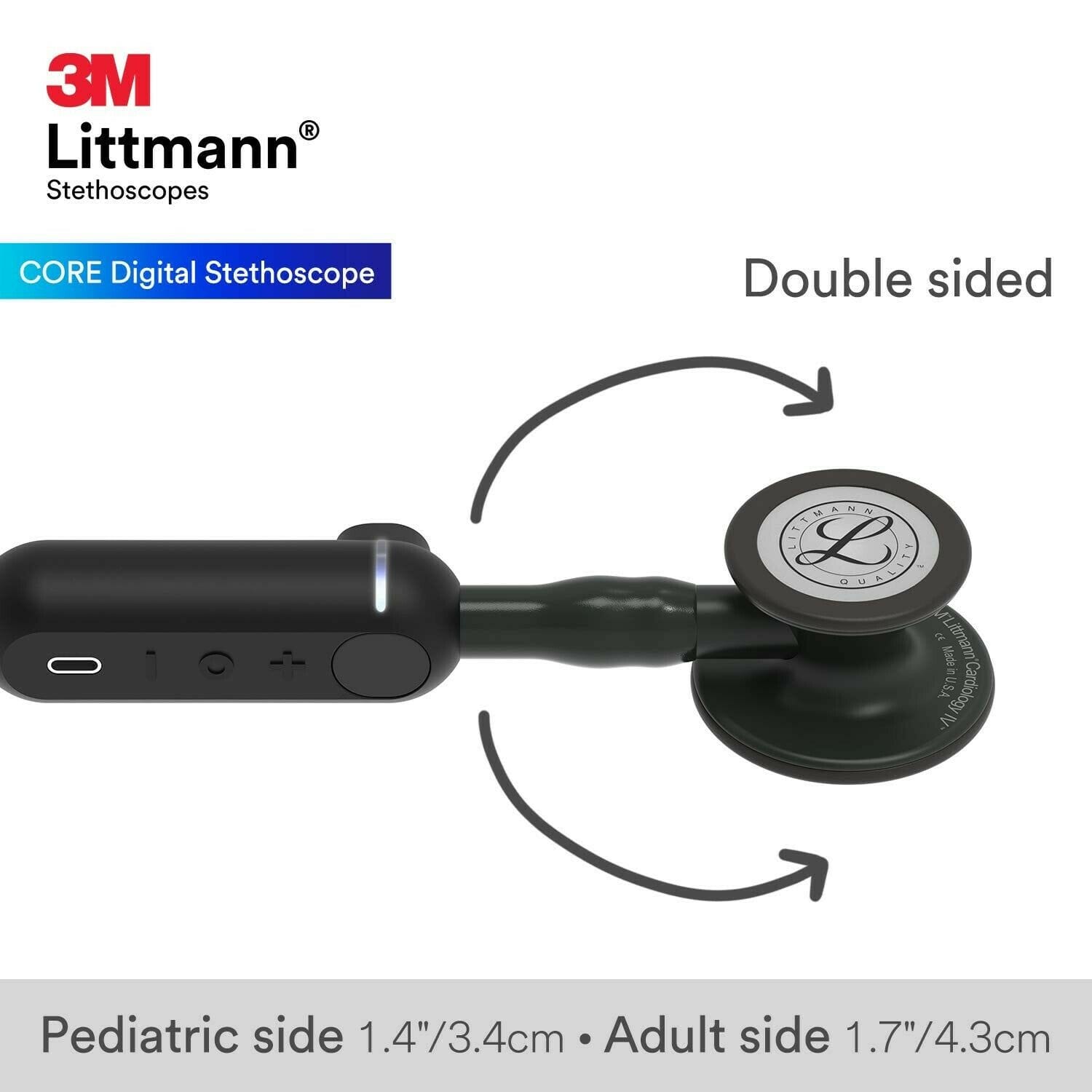

Diaphragm Flexibility

Diaphragms on both the adult and kid sides of the chest piece may be adjusted. The pediatric side is useful for carotid assessment, bandaging, and individuals who are small or thin.
